Serial Console
Serial Console (root access)
Section titled “Serial Console (root access)”The serial console connector is located on the top side of the mainboard. The connector pinout is as follows:
| Pin | Name |
|---|---|
| X10.1 | M4_RX |
| X10.2 | M4_TX |
| X10.3 | IMX_RX |
| X10.4 | IMX_TX |
| X10.5 | SCU_RX |
| X10.6 | SCU_TX |
| X10.7 | GND |

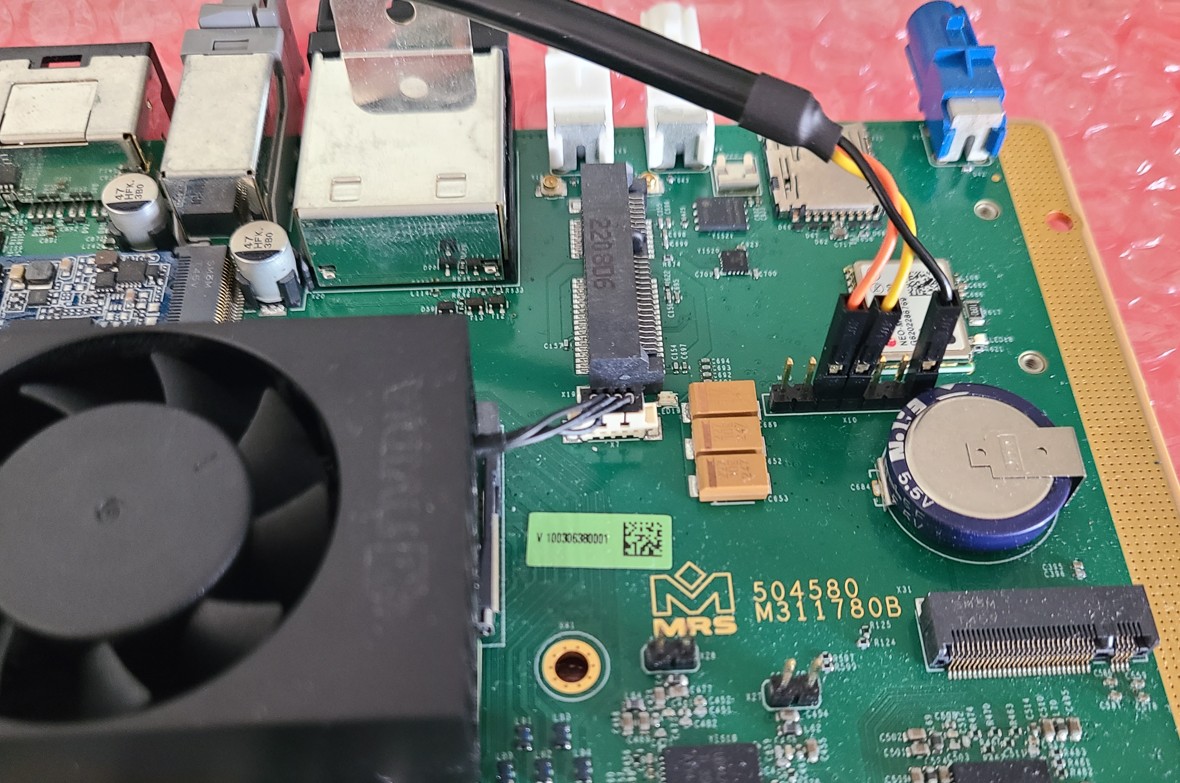

Using your UART-to-USB adapter, you will need to connect the ground wire to pin X10.7, your RX to pin X10.4, and your TX to pin X10.3.
